6-GFM-38Ah UPS VRLA Lead Acid Battery Sealed 12V 38Ah Deep Cycle Battery

  • 1
  • 2

Brand Name : LIRUISI

Model Number : 6-GFM-38Ah

MOQ : bargaining

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Sealed type : Sealed

Maintenance type : Free

Voltage : 12v

Application : UPS

Contact Now

6-GFM-38Ah 12V 38Ah VRLA Battery

External Dimensions (mm)



Features

● The design life of floating charge is 10-12 years (25℃);
● Maintenance-free, no need to add water and rehydration;
● Unique sealing technology ensures extremely low probability of acid climbing;
● Adopt flame retardant ABS shell;
● Extremely low grid corrosion rate and water loss rate, making the working life longer;
● Colloidal electrolyte, good deep discharge cycle performance and wide operating temperature range;
● Please control the temperature between -15℃~50℃ when charging and discharging.
6-GFM-38Ah UPS VRLA Lead Acid Battery Sealed 12V 38Ah Deep Cycle Battery



Specification



Normal Voltage  12V

Rated Capacity(20 hours rate)

 38AH




Dimension

Total Height (with terminals)

 174mm
Length  195 mm
Width  165mm
Height  174mm
Weight (Approx)  10.3kg



Feature






Capacity

 (25

℃)

 20 hours rate  38Ah
10 hours rate  34.5Ah
3 hours rate  28.5Ah
1 hours rate  21Ah

Internal Resistance



 Full sharged Battery 25℃   ≤13mΩ



Capacity affected By Temperature

 40℃ 102%
25℃ 100%
0℃ 85%
-15℃ 62%




Auto-Discharge

(25℃)



Capacity after 3 months storage

 91%



Capacity after 6 months storage

 82%



Capacity after 12 months storage

 64%




Charge (constant Voltage)

Cycle



Initial Votage 14.4-14.8V/12 (25℃)

Charging current less than 7.6 A

Charging Way
(Constant Pressure)

Float

Voltage 13.5-13.7V /12V (25℃)


Materials


Composition Positive plate Negative plate Shell Cover Separator Safety Valve Terminal Electrolyte
Materials Pbo2 pb ABS ABS AGM Rubber Copper

H2SO4

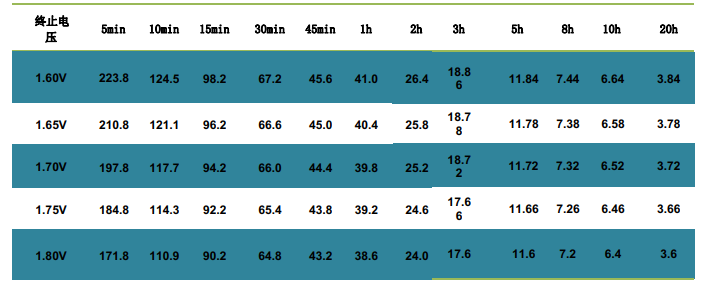

Constant Current Discharge Parameters - Ampere Value: Ampere (25℃)
6-GFM-38Ah UPS VRLA Lead Acid Battery Sealed 12V 38Ah Deep Cycle Battery

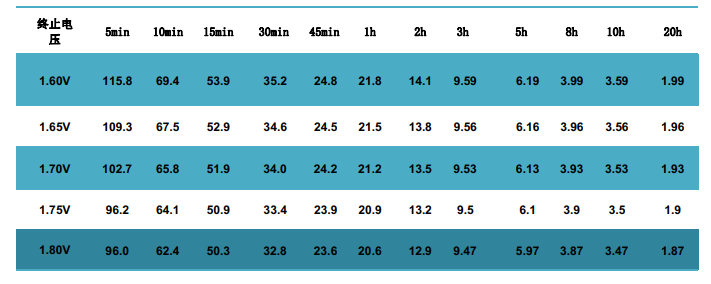

Constant power discharge parameters - watts per cell: watts/cell (25°C)

6-GFM-38Ah UPS VRLA Lead Acid Battery Sealed 12V 38Ah Deep Cycle Battery

The rated operating temperature range of the battery is -20℃--55℃. All technical data are measured at a rated temperature of 25°C. The ideal operating temperature range of the battery is 20℃±5℃. Too high temperatures will shorten battery life, and too low temperatures will reduce usable capacity. The absolute upper limit of temperature is 55°C.


Product characteristic curve


6-GFM-38Ah UPS VRLA Lead Acid Battery Sealed 12V 38Ah Deep Cycle Battery


6-GFM-38Ah UPS VRLA Lead Acid Battery Sealed 12V 38Ah Deep Cycle Battery
