6-GFM-24Ah 12V24Ah VRLA battery

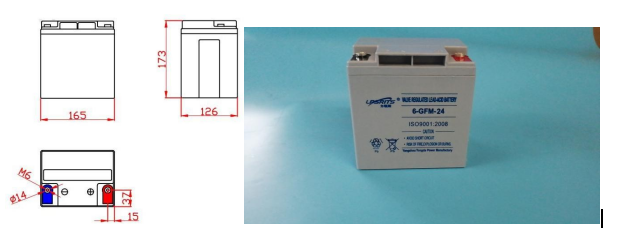

External Dimensions (mm)
Features
● The design life of floating charge is 10-12 years (25℃);
● Maintenance-free, no need to add water and rehydration;
● Unique sealing technology ensures extremely low probability of acid climbing;
● Adopt flame retardant ABS shell;
● Extremely low grid corrosion rate and water loss rate, making the working life longer;
● Colloidal electrolyte, good deep discharge cycle performance and wide operating temperature range;
● Please control the temperature between -15℃~50℃ when charging and discharging.
Specification
| Normal Voltage | 12V |
| Rated Capacity(20 hours rate) | 24Ah |
| Dimension | Total Height (with terminals) | 175 mm |
| Length | 165 mm |
| Width | 125 mm |
| Height | 175mm |
| Weight (Approx) | 7.4kg |
Feature
| Capacity (25℃) | 20 hours rate | 17Ah |
| 10 hours rate | 15.3Ah |
| 3 hours rate | 12.75Ah |
| 1 hours rate | 9.35Ah |
| Internal Resistance | Full sharged Battery 25℃ | ≤20mΩ |
| Capacity affected By Temperature | 40℃ | 102% |
| 25℃ | 100% |
| 0℃ | 85% |
| -15℃ | 62% |
| Auto-Discharge (25℃) | Capacity after 3 months storage | 91% |
| Capacity after 6 months storage | 82% |
| Capacity after 12 months storage | 64% |
| Charge (constant Voltage) | Cycle | Initial Votage 14.4-14.8V/12 (25℃) Charging current less than 3.4A |
| Float | Voltage 13.5-13.7V /12V (25℃) |
Materials
| Composition | Positive plate | Negative plate | Shell | Cover | Separator | Safety Valve | Terminal | Electrolyte |
| Materials | Pbo2 | pb | ABS | ABS | AGM | Rubber | Copper | H2SO4 |
Constant Current Discharge Characteristics: A(25℃,77℉) (Amp/cell)
| 终止电压V | 5min | 10min | 15min | 20min | 30min | 45min | 1 h | 1.5 h | 2 h | 3 h | 4 h | 5 h | 6h | 10 h | 20 h |
| 9.6V | 72.2 | 47.0 | 34.9 | 29.0 | 21.5 | 15.1 | 12.0 | 8.26 | 6.37 | 4.72 | 3.61 | 2.97 | 2.39 | 1.65 | 0.857 |
| 9.9V | 67.8 | 46.0 | 34.7 | 28.6 | 21.2 | 15.0 | 11.9 | 8.10 | 6.33 | 4.70 | 3.59 | 2.95 | 2.38 | 1.64 | 0.855 |
| 10.2V | 63.5 | 44.9 | 34.0 | 28.1 | 21.0 | 14.9 | 11.7 | 7.93 | 6.16 | 4.65 | 3.57 | 2.93 | 2.36 | 1.63 | 0.852 |
| 10.5V | 56.9 | 41.6 | 31.6 | 26.7 | 16.5 | 14.6 | 9.35 | 7.77 | 5.95 | 4.25 | 3.54 | 2.90 | 2.33 | 1.53 | 0.850 |
| 10.8V | 50.3 | 37.1 | 29.5 | 26.0 | 15.8 | 14.4 | 9.05 | 7.56 | 5.67 | 4.10 | 3.49 | 2.83 | 2.29 | 1.45 | 0.845 |
Constant power discharge characteristics: W (25℃, 77℉)
| 终止电压 V | 5min | 10min | 15min | 20min | 30min | 45min | 1 h | 1.5 h | 2 h | 3 h | 4 h | 5 h | 6h | 10 h | 20 h |
| 9.6V | 992 | 739 | 523 | 441 | 317 | 234 | 183 | 118 | 104 | 73.8 | 58.6 | 47.9 | 40.8 | 26.4 | 14.6 |
| 9.9V | 931 | 724 | 520 | 434 | 314 | 232 | 181 | 116 | 103 | 73.4 | 58.2 | 47.5 | 40.6 | 26.3 | 14.6 |
| 10.2V | 872 | 706 | 509 | 426 | 310 | 230 | 179 | 113 | 101 | 72.7 | 57.8 | 47.2 | 40.3 | 26.0 | 14.5 |
| 10.5V | 782 | 654 | 474 | 405 | 303 | 226 | 175 | 111 | 97.2 | 71.6 | 57.4 | 46.8 | 39.8 | 25.9 | 14.4 |
| 10.8V | 691 | 583 | 442 | 394 | 293 | 223 | 172 | 108 | 92.6 | 70.1 | 56.6 | 45.6 | 39.2 | 25.6 | 14..3 |
The rated operating temperature range of the battery is -20℃--55℃. All technical data are measured at a rated temperature of 25°C. The ideal operating temperature range of the battery is 20℃±5℃. Too high temperatures will shorten battery life, and too low temperatures will reduce usable capacity. The absolute upper limit of temperature is 55°C.

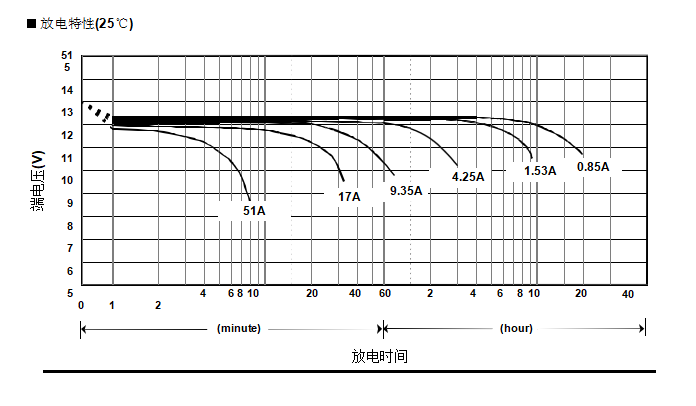

Product characteristic curve
