Networking High Frequency UPS Single Phase E Series 6kVA - 10kVA

  • 1
  • 2

Brand Name : lpsrits

Place of Origin : China

MOQ : 1 set

Price : bargaining

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 5-8 working days

Packaging Details : CDA rack type precision air conditioner, CDA series 3.5-12.5KW is a cabinet level temperature control product specially designed for the high heat density data center. It is placed close to the heat source on the cabinet rack, which can accurately handle t

Phase : Single Phase

Application : Networking

Output voltage : Three Phase 380VAC (3Ph + N)

Wave form : Sine Wave THD<3%(Linear Load); Sine Wave THD<8%(Non-Linear Load)

Product name : 100kva ups On-Line Interactive Uninterrupted Power Supply

Transfer time : 0 ms

Contact Now


Advantages & Features



E6~10kVA on-line UPS features





Zero transfering time



Dual conversion pure online architecture, zero conversion time for battery mains power supply mode switching, support constant frequency output, and effectively ensure load power supply reliability







Adopt DSP digital control technology



Adopt advanced DSP digital control technology to provide stable and reliable sine wave power supply







Three level inverter technology

High efficiency and energy saving, less distortion, stronger load carrying capacity, suitable for various complex types of loads









Ultra wide input voltage frequency range



90v~300v extremely wide input voltage and 40~70hz frequency input range, compatible with harsh power environment, reduce battery discharge times and improve battery service life





Super load carrying capacity



The output power factor reaches 0.9125% of the rated power for 10 minutes. It can output 200/208/220/230/240vac 50/60hz and is widely applicable to various voltage and frequency systems







can be used with generators



The input voltage and frequency range are wide, which can effectively isolate the bad power generated by the generator and provide pure, safe and stable power supply for the load





High input power factor



Active power factor correction (PFC) technology is adopted, and the input power factor is more than 0.99, which effectively avoids power grid pollution and effectively reduces electricity expenditure





Reliable product design



All glass fiber double-sided circuit material, combined with large span components, is strong, corrosion-resistant and greatly improves environmental adaptability





Dust proof design



Reasonable air duct design and three proofing paint coating can effectively prevent dust pollutants from accumulating and eroding the circuit







Open design



The powerful DSP core and open design architecture make the machine more customizable, which is in line with the automation and intelligent monitoring system



technical specifications



Model E6K E6KS E10K E10KS



rated frequency

VA/W 6kVA/5.4kW 10kVA/9kW

machine architecture



 Dual conversion online UPS machine architecture
Number of input and output phases  single in/single out
input

Number of input lines



Single phase two wire (L, n) + protective ground
input voltage range

high voltageHV: L,N: 90~300VAC

lower voltage LV: L,N 55~145VAC

input frequency range 40Hz-70Hz
input power factor ≥0.99
output number of output lines 单相两线(L,N)+保护地Single phase two wire (L, n) + protective ground
rated voltage

高压版HV: 208/220/230/240VAC

低压版LV: 110/115/120/127VAC

High voltage version hv: 208/220/230/240vac



LV version: 110/115/120/127vac



Output voltage accuracy ±1%
output frequency

50/60±4Hz(锁相跟随市电) / 50/60Hz±0.1%(定频模式)

50/60 ± 4Hz (phase locked following mains) / 50/60hz ± 0.1% (constant frequency mode)

output wave 纯正弦波 pure sine wave

Output distortion

(THDV%)

<2%(线性负载)(linear load)
<6%(非线性负载))(non-linear load0
overload capacity

10分钟@105%~125%额定负载

1分钟@125%~150%额定负载

0.5秒@>150%额定负载

10min @105%~125% rated load



1 min @125%~150% rated load



0.5s @ >150% rated load



frequency Mains mode 93%
battery mode 91%

battery&charger



battey voltage/①quantity

144VDC/12

internal

192/240VDC

external

192VDC/16

internal

192/240VDC

external

battery capacity 12V/7AH External battery decision 12V/7AH External battery decision
back-up time half load>6 mins half load>6 mins
charging current



Standard machine (built-in battery): 1A



Long life machine (external battery): 4A

Structure shape box style Tower / rack
 size



E6ks:190 (W) *318 (H) *368 (d) mm



E10ks: 190 (W) X340 (H) x528 (d) mm



E6k:190 (W) X360 (H) x528 (d) mm



E10k: 190 (W) x470 (H) x534 (d)

 size



UPS host: 438mm (W) x 88mm (2U) (H) x 500mm (d) without battery



Battery box: 438mm (W) x 132mm (3U) (H) x 500mm (d)

weigt(kg) 37 15.5 47.5 16.5
Human Machine Interface LCD display Display input / output voltage, frequency, load percentage, operating mode and machine status

communication interface RS232standard RS232
Expansion card slot


Networking High Frequency UPS Single Phase E Series 6kVA - 10kVA





Optional network monitoring card, supporting PC, mobile phone remote monitoring, MODBUS and dry connection point card



Environment parameter working temperature range -10~45oC
working humidity range 0-98%(non-condensing)
noisy <50dB @ 1 meters





Structure appearance

front panel

Networking High Frequency UPS Single Phase E Series 6kVA - 10kVA

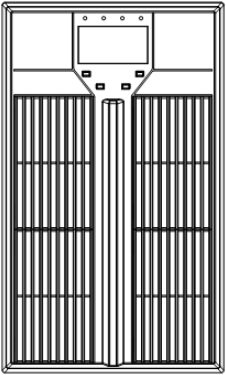

E6K(S)/E10K(S) front panel





Networking High Frequency UPS Single Phase E Series 6kVA - 10kVA

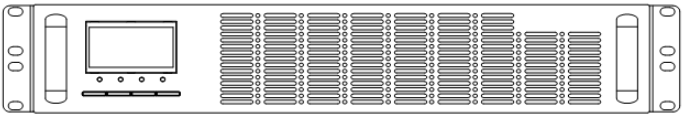

E6KRS~E10KRS 2U rack-mountedUPS













noted





② Including panel size, panel length of different styles varies slightly



③ Other shapes and structures, input and output socket plug configuration can be customized. For details, please contact the sales representative



④ Technical parameters and indicators can be customized. Please contact the sales representative for details
